[Xf-006] Zenith finger bracket assembly (fixing finger bracket assembly)

  • Product Code: Xf-006
  • 호환기종 Model : ApeosPort C2060 / C2560 / C3060 , VersaLink B7025 / B7030 / B7035 , VersaLink C7020 / C7025 / C7030

Zenith Finger Bracket Assembly

(Xenith Finger Bracket Assembly)







Order number Xf-006















Compatible equipment


Apeos 2560 / 3060 / 3560
ApeosPort C2060 / C2560 / C3060
VersaLink B7025 / B7030 / B7035
VersaLink C7020 / C7025 / C7030





“
A product that solves the problem of paper jams caused by toner residue accumulation in the fuser.


  ”

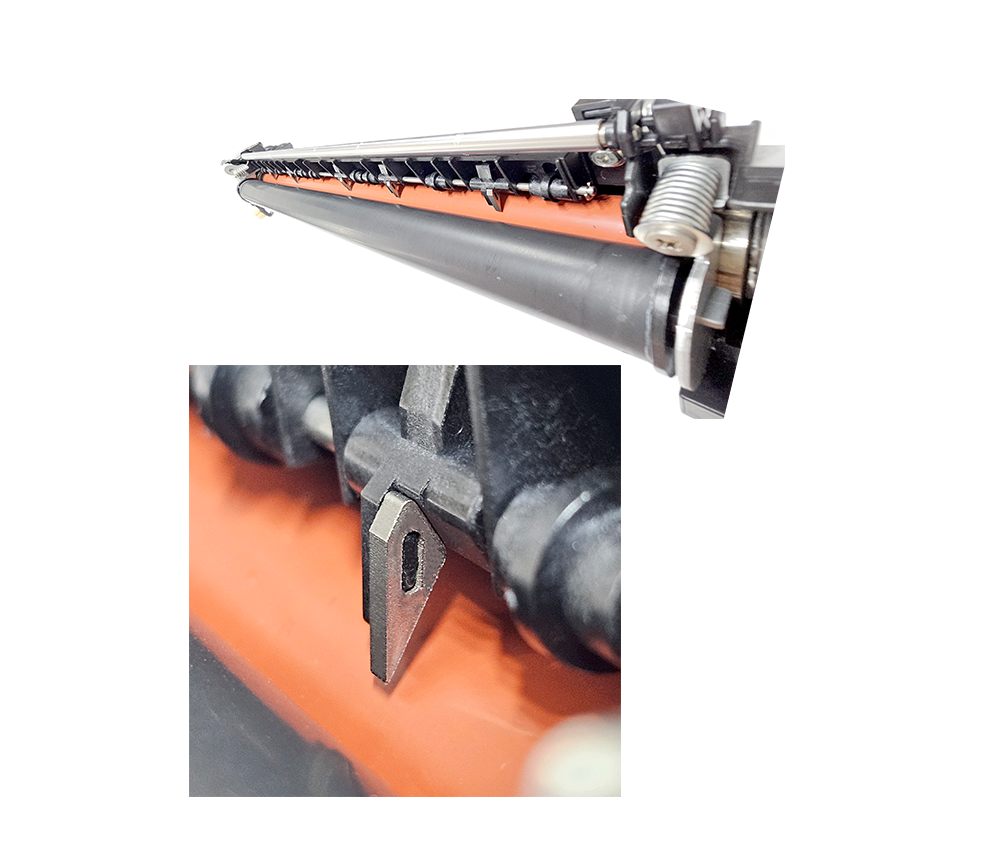

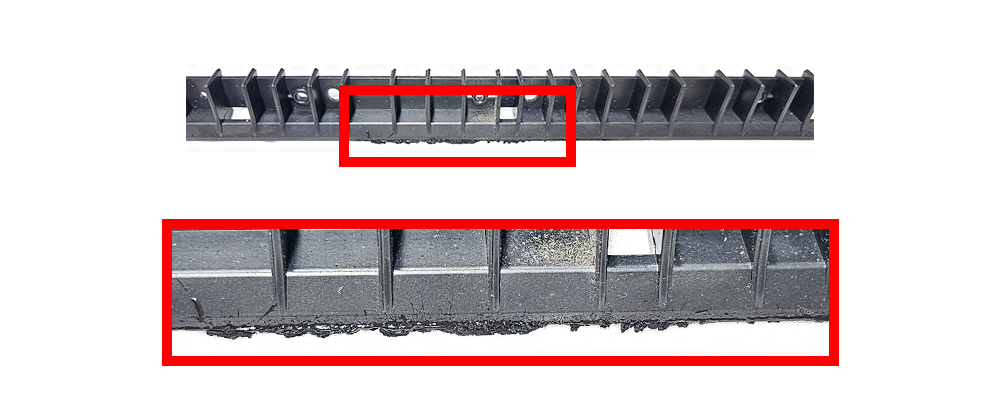

Fixture finger with accumulated debris

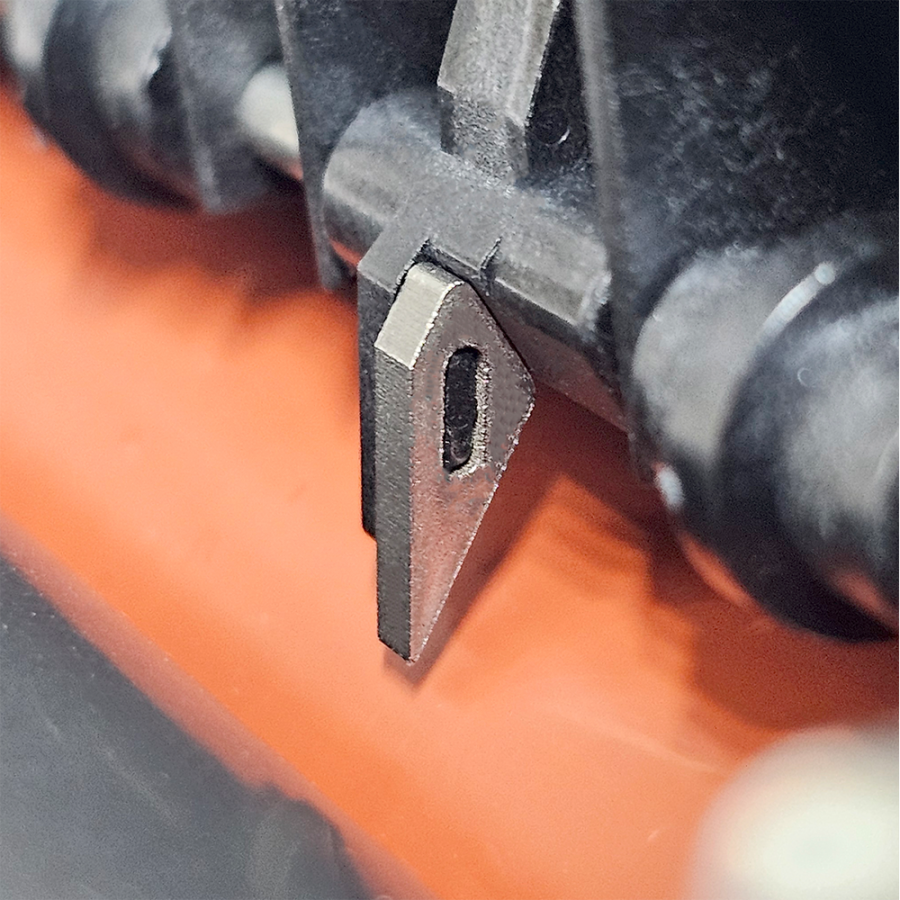

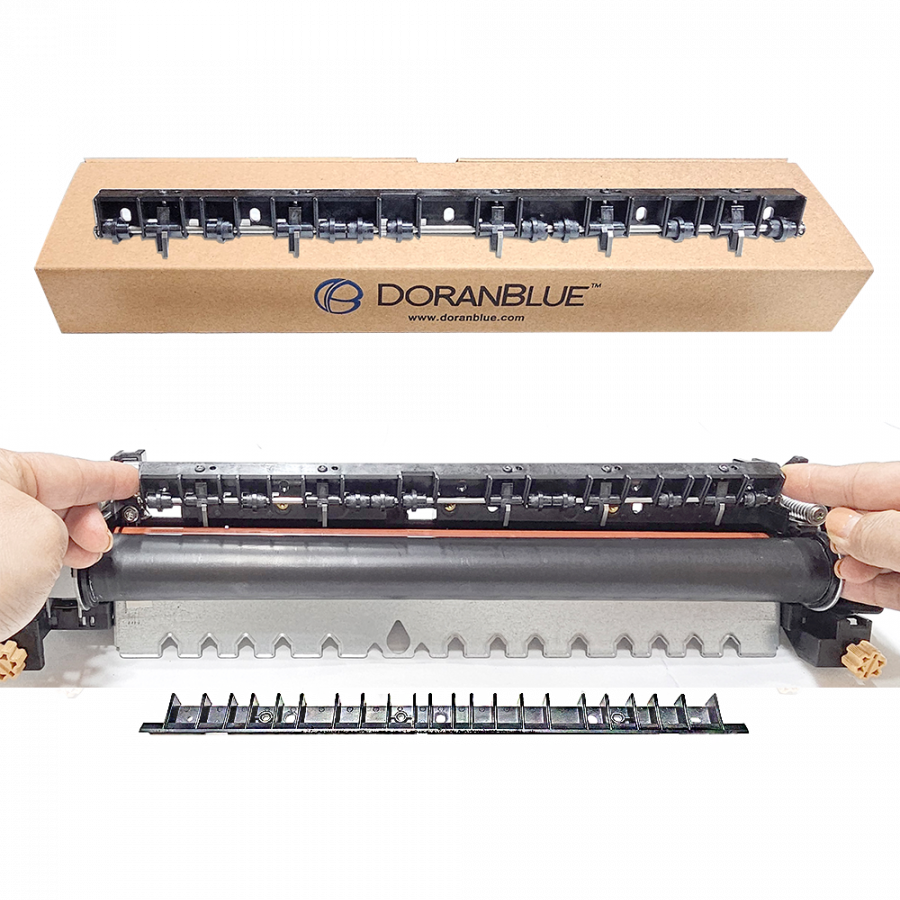

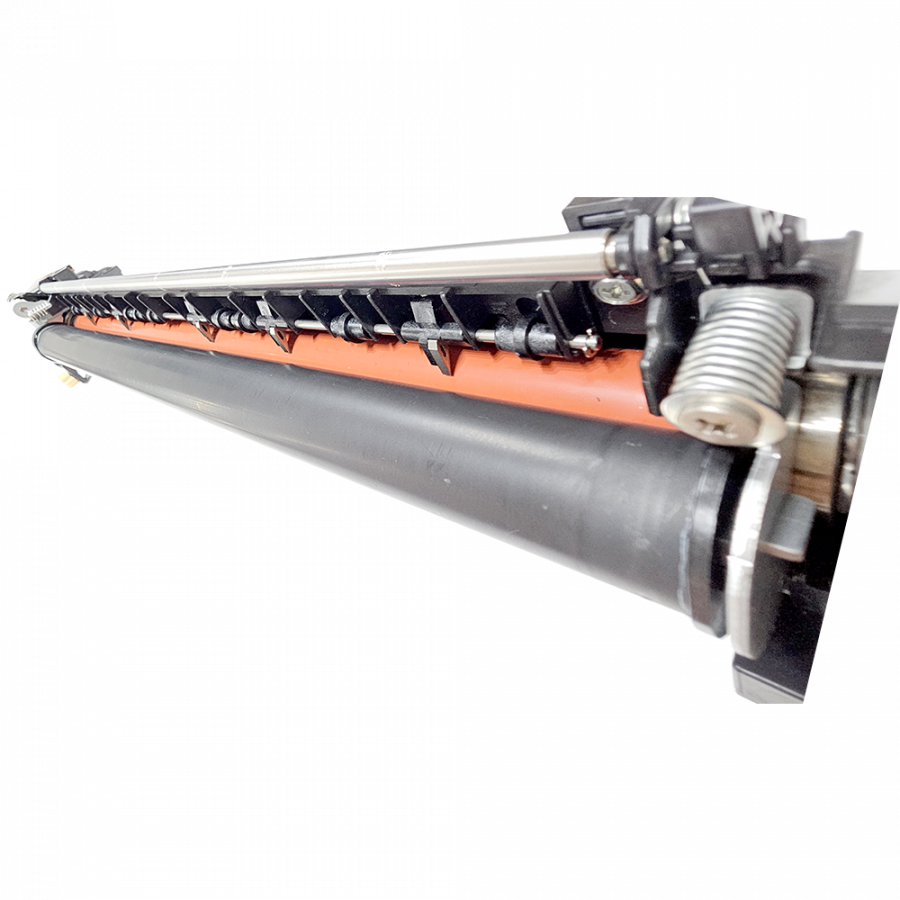

Settlement replaced with Doran Blue Finger

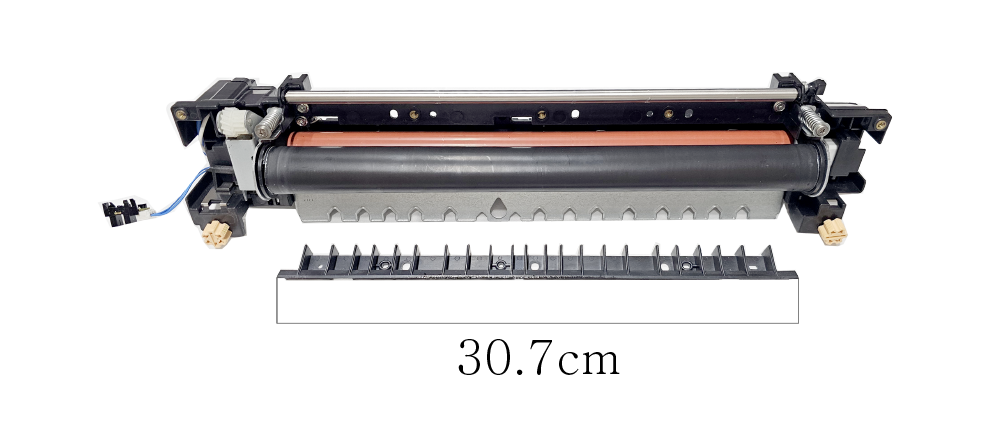

How to check for compatible fixing parts

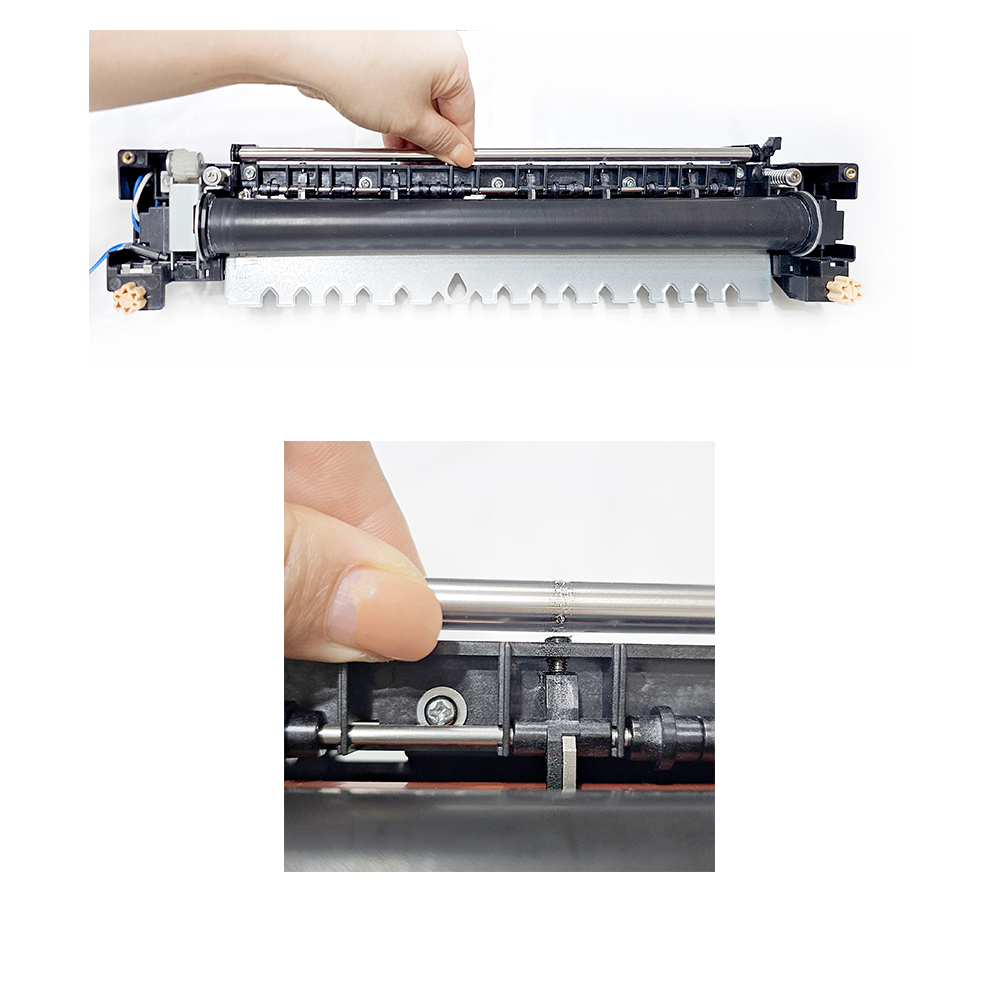

Please check the finger bracket length below.


This is a fixing unit that can be used if the finger length is equal to 30.7 centimeters.

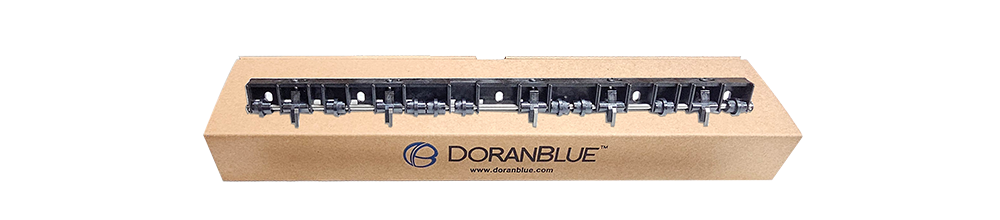

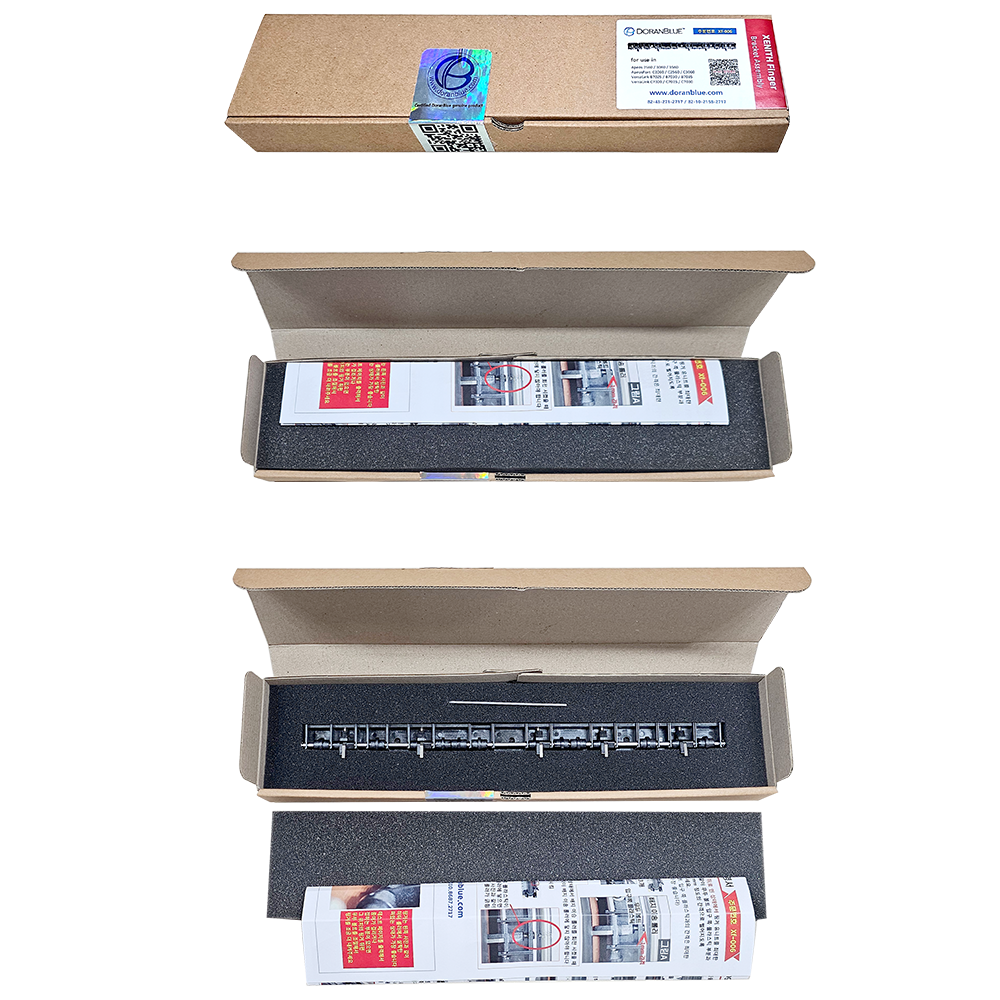

packaging

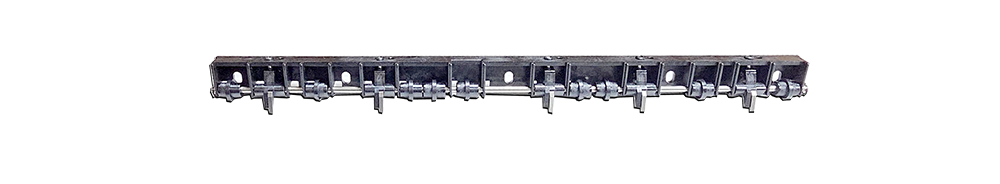

Components

Finger bracket assembly, hex wrench, instruction manual

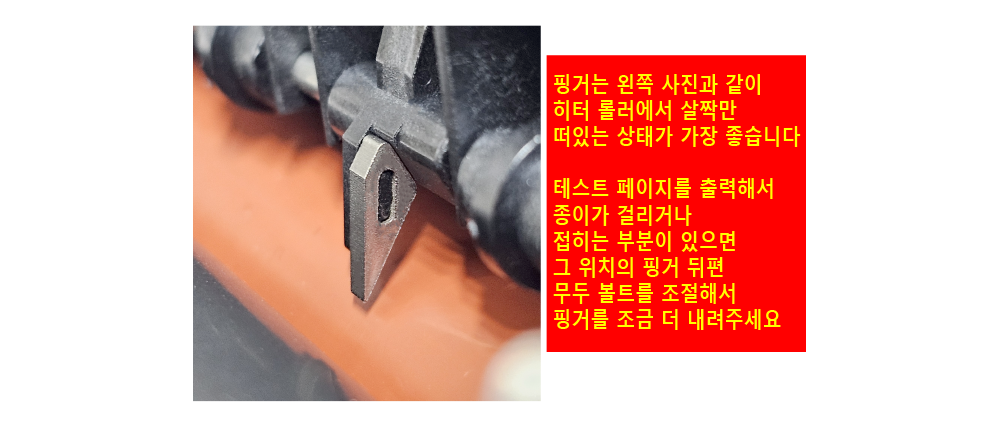

If the plastic at the entrance of the headless screw touches the bag roller (rod)
As shown in the photo, scratches on the output roller may cause a paper jam.







Installation Manual




Model
호환기종 ApeosPort C2060 / C2560 / C3060 , VersaLink B7025 / B7030 / B7035 , VersaLink C7020 / C7025 / C7030
