Fixture heater roller finger

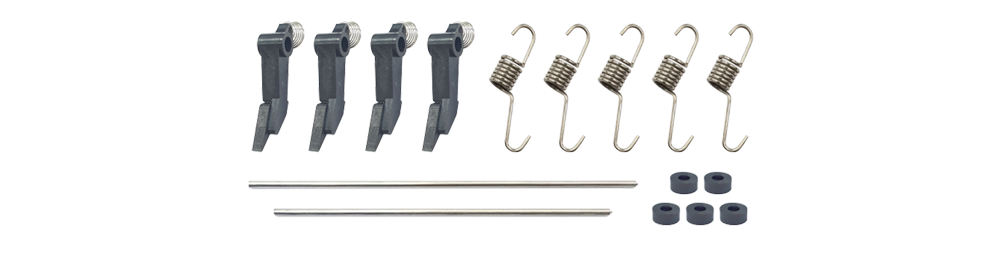

Composition: 4 fingers, 5 fixed springs, 5 rings, 2 rods

Order number Xf-005

1. Improvements in Doran Blue products (Ver.2)

The finger tips are made of a strong material that does not break easily, so they can be used for a long time.

The structural angle of the finger is changed so that the finger tip does not touch the heater roller, thereby preventing damage to the heater roller.

2. Comparison with existing products

Even if the existing finger breaks and the mounting part becomes unusable, the fixing part can be used again by attaching the Doran Blue product.

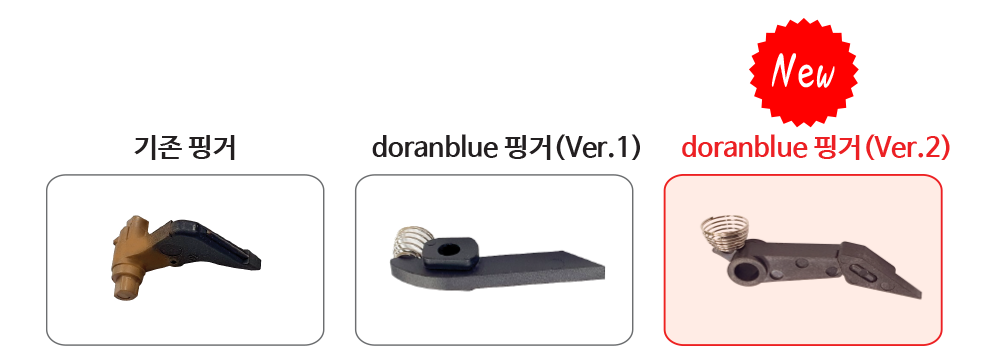

Products developed by Doran Blue from Ver.1 to Ver.2

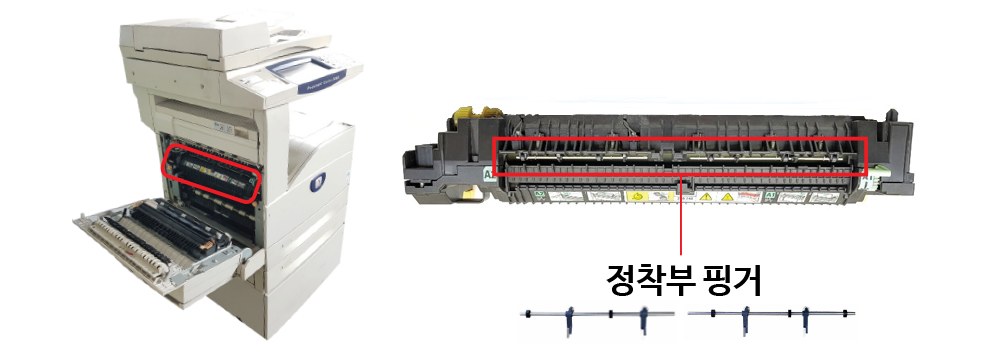

3. Fixture finger mounting location

4. How to install the fixing finger

Be sure to align the two rods toward the center. If the center of the fixing is bent, the Doran Blue Finger will not function properly.

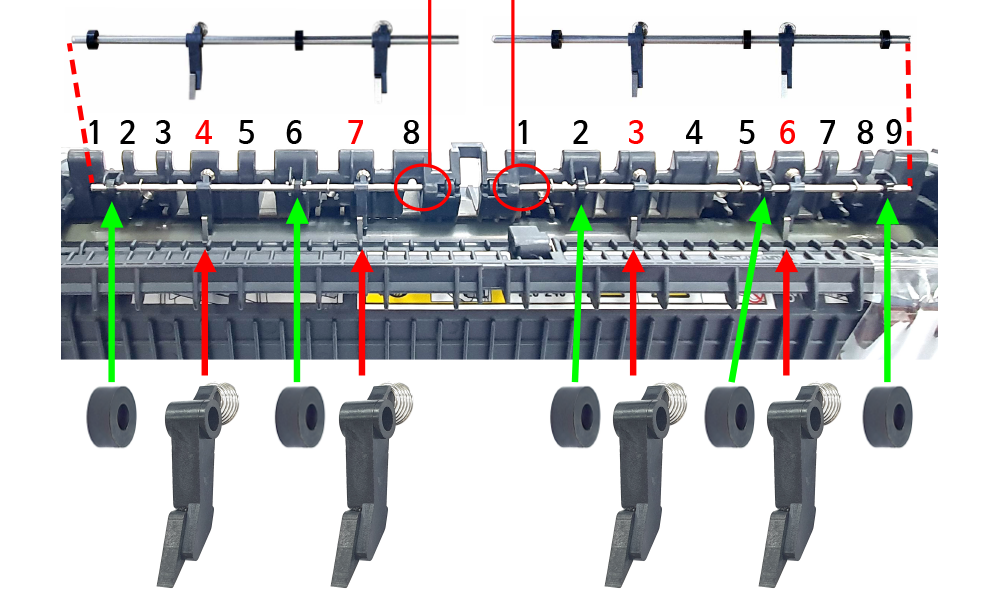

Install the fingers in the positions (left 4, 7/right 3, 6)

Please hang the fixed spring on the spot where the existing finger was removed.

Install the roller in the same position as the old roller was removed.

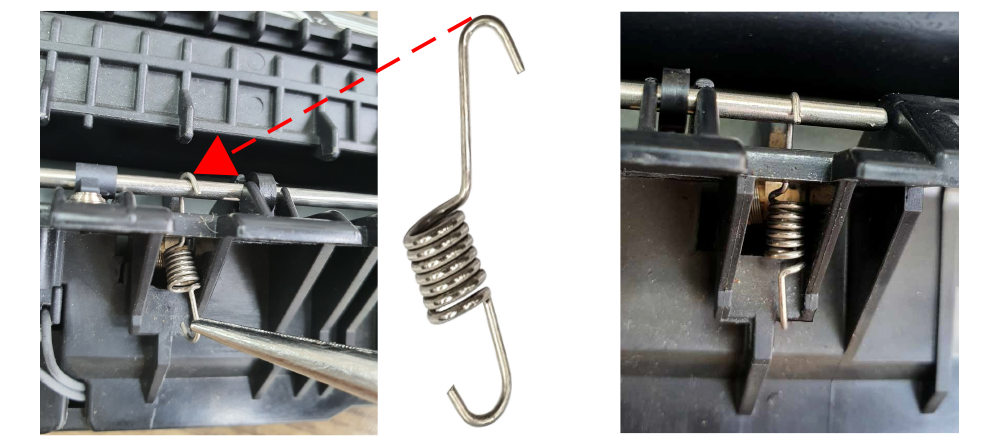

Hold the end of the spring with a long rose, hook the long end onto the pole, and pull the short end to secure it onto the frame.
